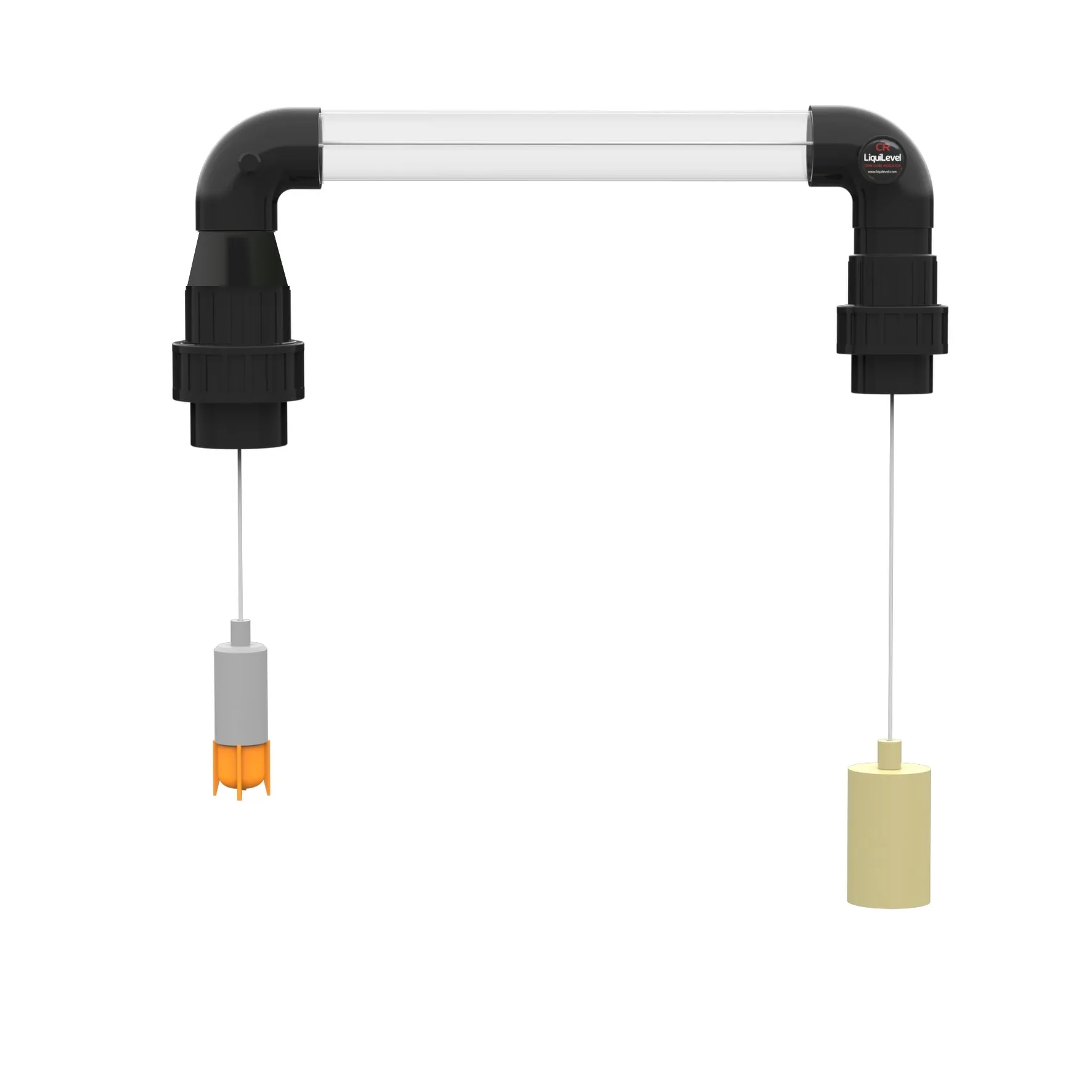

LiquiLevel CR Basic Tank level indicator system is designed for chemical and process tanks and includes all the important parts required to install 1 system to a storage tank. The customer sources the 1.25"conduit pipe for elbows, 2" Clear PVC vertical pipe for counterweight, pipe clips and pipe joiners only. Everything else is supplied in this kit form for easy and quick installation.
The LiquiLevel CR Basic Tank Level Indicator System includes:

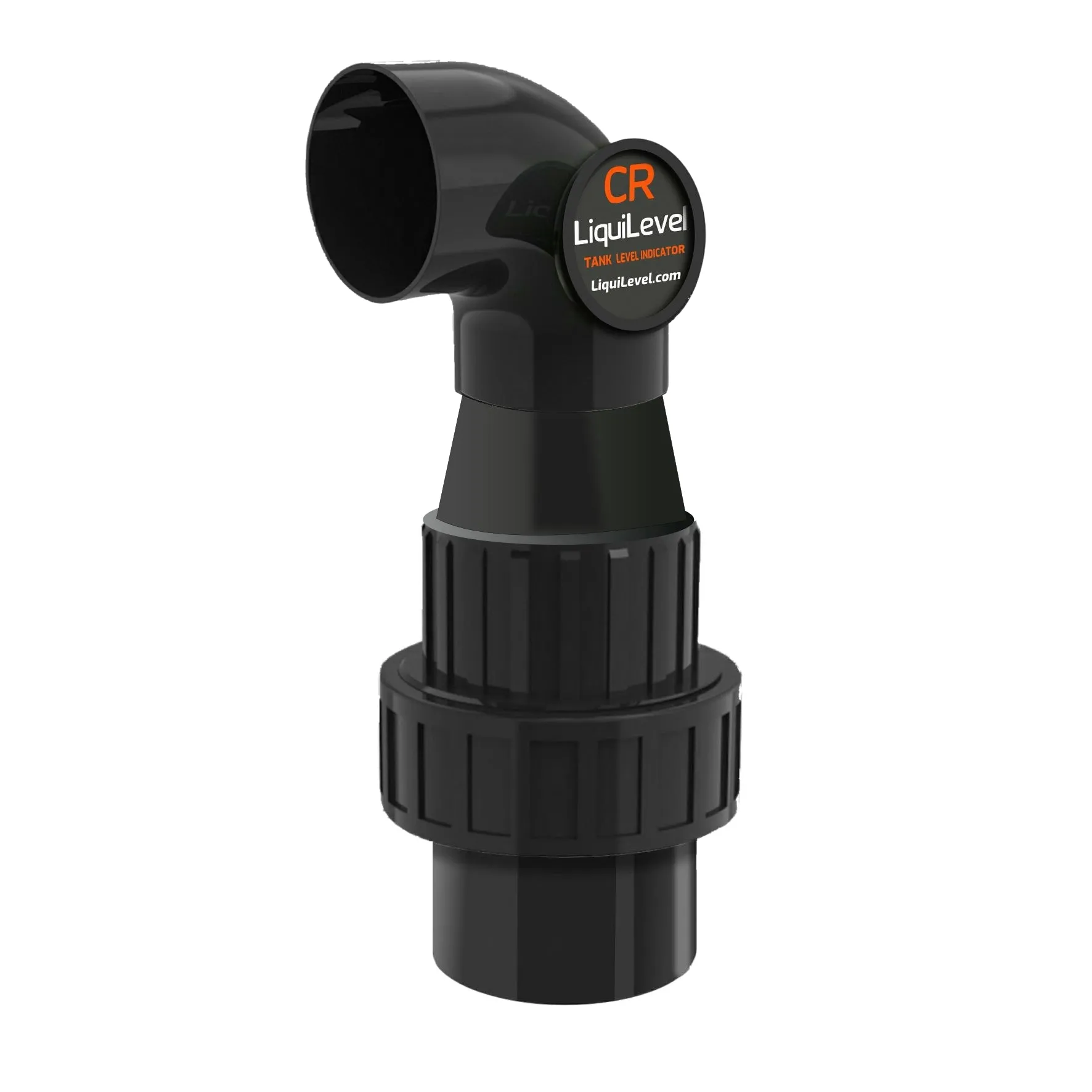

- 2x PVC 1.25" 90 degree pulley elbows
- 1x PVC 1.25" pipe union
- 1x PVC 2" pipe union
- 1x PVC 2" to 1.25" Reducer
- Option of either 1x 80mm Solid Polypropylene float or 130mm Polypropylene fillable float ball with eyelet
- 1x 3mm x 7 metres of braided Polypropylene cord (for tanks up to 5 metres tall) longer cord available.
- 1x PVC Orange and Grey magnetic counterweight designed for 2" pipe.
- 1x PVC 1.25" tank adapter
- 1x PVC 2" pipe end cap
- 1x installation and user instructions
for technical specification
